Product introduction：

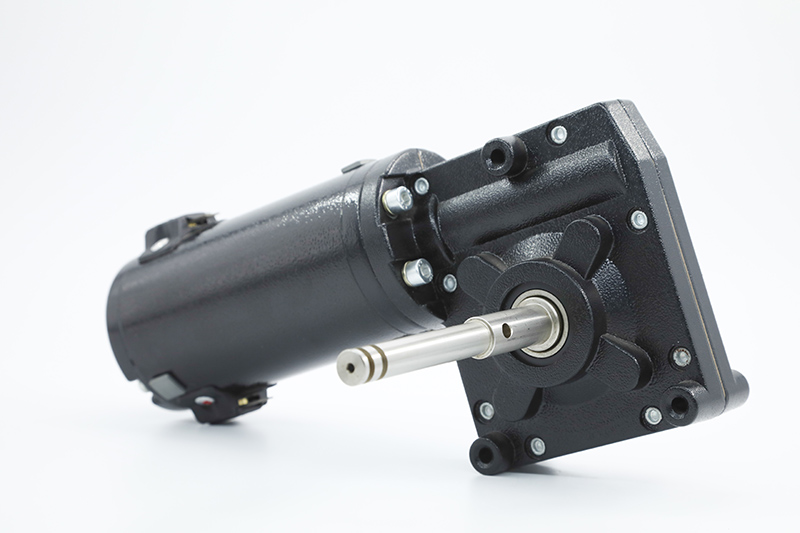

73ZYJ02 DC permanent magnet reduction motor is composed of DC permanent magnet motor and worm gear reducer. It is characterized by compact structure, convenient assembly and disassembly, firm connection, strong load resistance, large speed and torque adjustment range, and is suitable for occasions with large changes in working conditions. For example, golf charter cars and electric cars are used as driving elements.
Technical parameters of motor
电机型号 Type | 电压 V | 转矩 N.m | 电流 A | 转速 r/min | 功率 W | 长度 cm |
73ZY-145 | 12/24 | 0.42 | 20/10 | 3200 | 150 | 145 |
Technical parameters of reducer
减速比 Ratio | 减速器尺寸 长*宽*高 | 空载转速 r/min | 负载转速 r/min | 额定转矩 N.m | 允许最大负载 N.m |
25:1 | 102*122*56 | 144 | 126 | 6 | 15 |
